安全 | Autonics

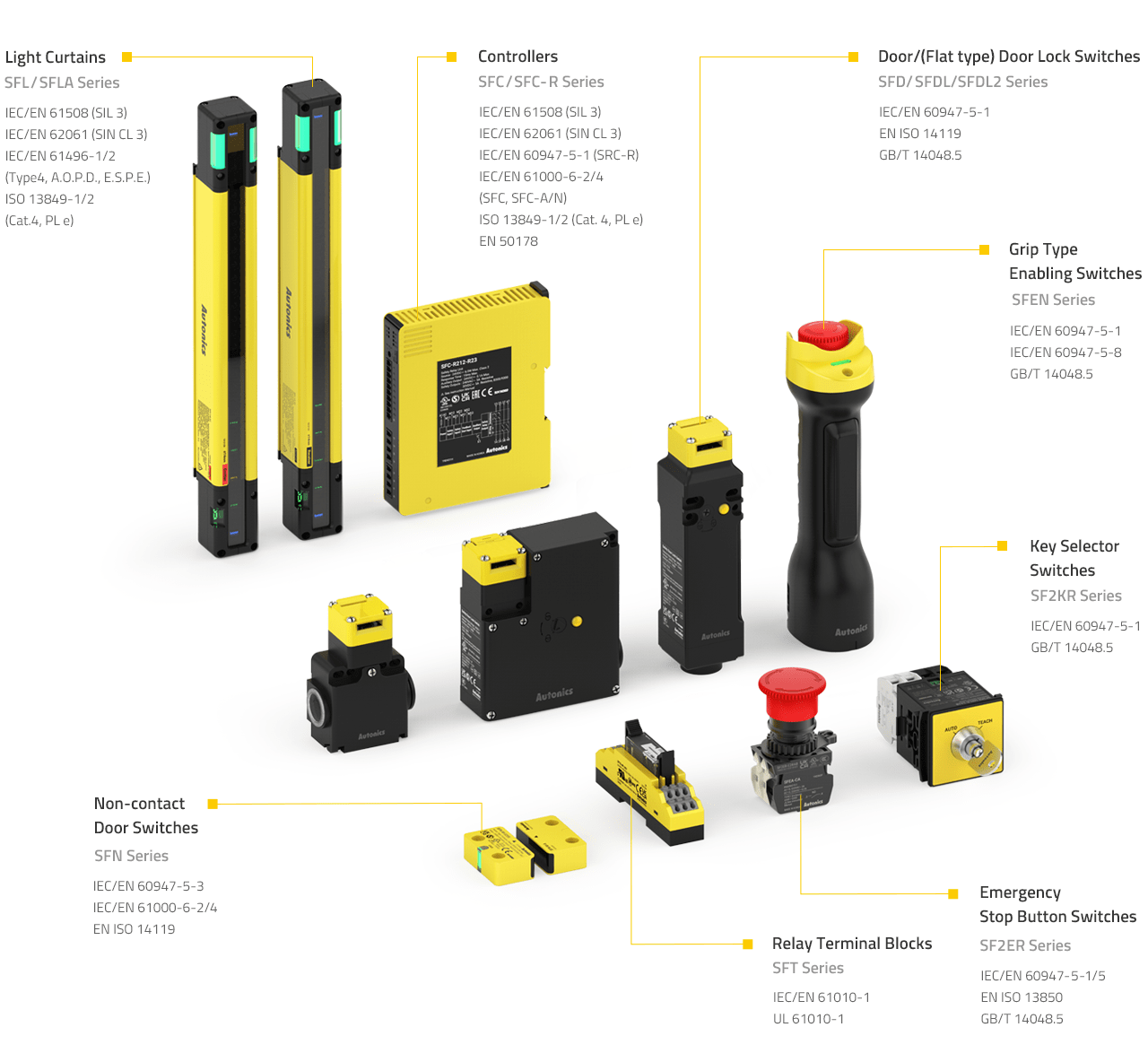

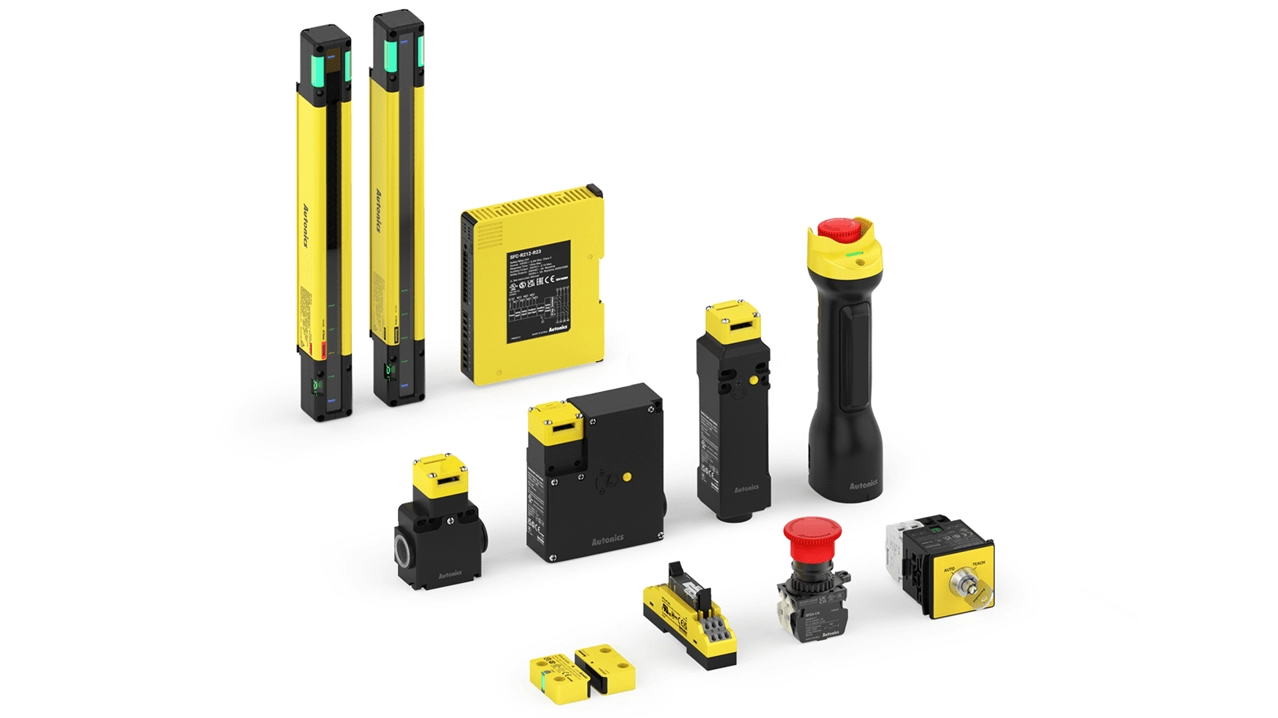

获得的安全标准

Autonics通过开发各种产品(例如传感器，控制器)积累的专业知识，来研发了安全产品。我们的安全产品通过获得各种安全标准和法规来提供可靠性。

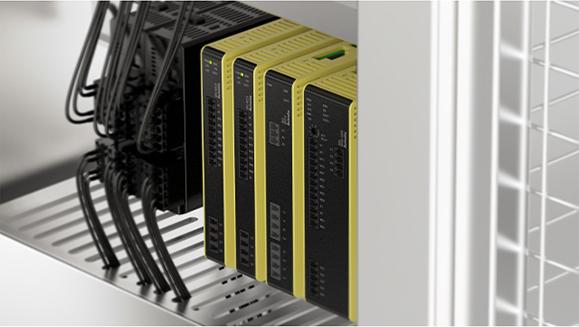

• 控制器
  SFC/SFC-R Series

  • IEC/EN 61508 (SIL 3)
  • IEC/EN 62061 (SIL CL 3)
  • IEC/EN 60947-5-1 (SRC-R)
  • IEC/EN 61000-6-2/4
    (SFC, SFC-A/N)
  • ISO 13849-1/2 (Cat. 4, PL e)
  • EN 50178

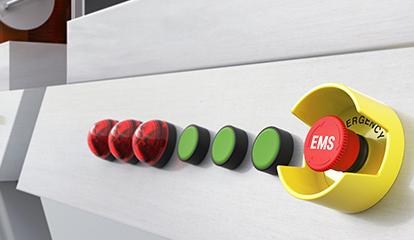

• 急停按钮开关
  SF2ERSeries

  • IEC/EN 60947-5-1/5
  • EN ISO 13850

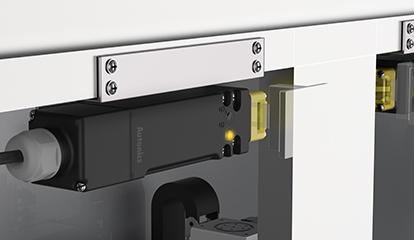

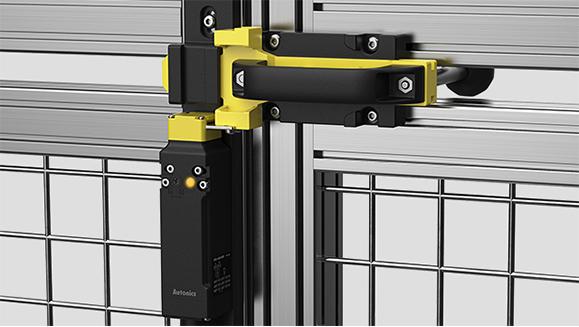

• 门/门锁开关
  SFD/SFDLSeries

  • IEC/EN 60947-5-1
  • EN ISO 14119

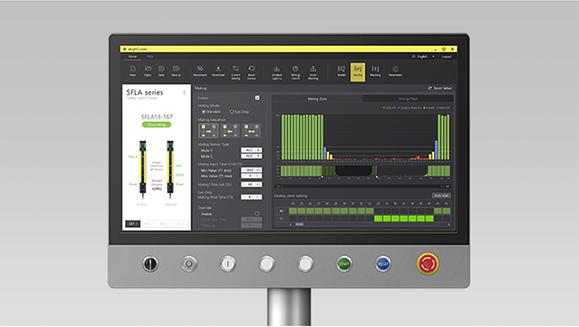

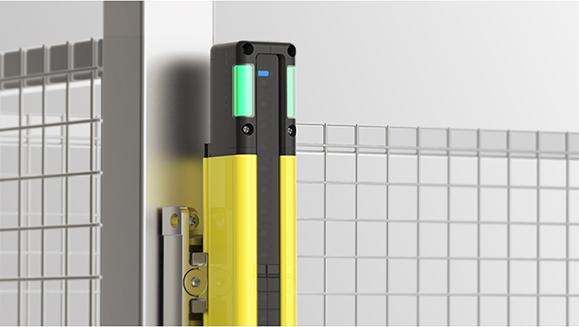

• 光幕
  SFL/SFLA Series

  • IEC/EN 61508 (SIL 3)
  • IEC/EN 61496-1/2
    (Type4, A.O.P.D., E.S.P.E.)
  • ISO 13849-1/2
    (Cat.4, PL e)

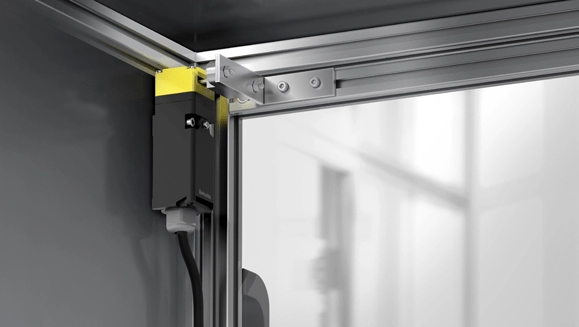

• 非接触式门开关
  SFNSeries

  • IEC/EN 60947-5-3
  • IEC/EN 61000-6-2/4
  • EN ISO 14119

推荐安全等级配置

配套使用正确的安全产品可以满足PL e / Cat.4 同效等级，从而在各种应用中提供最高级别的安全性。

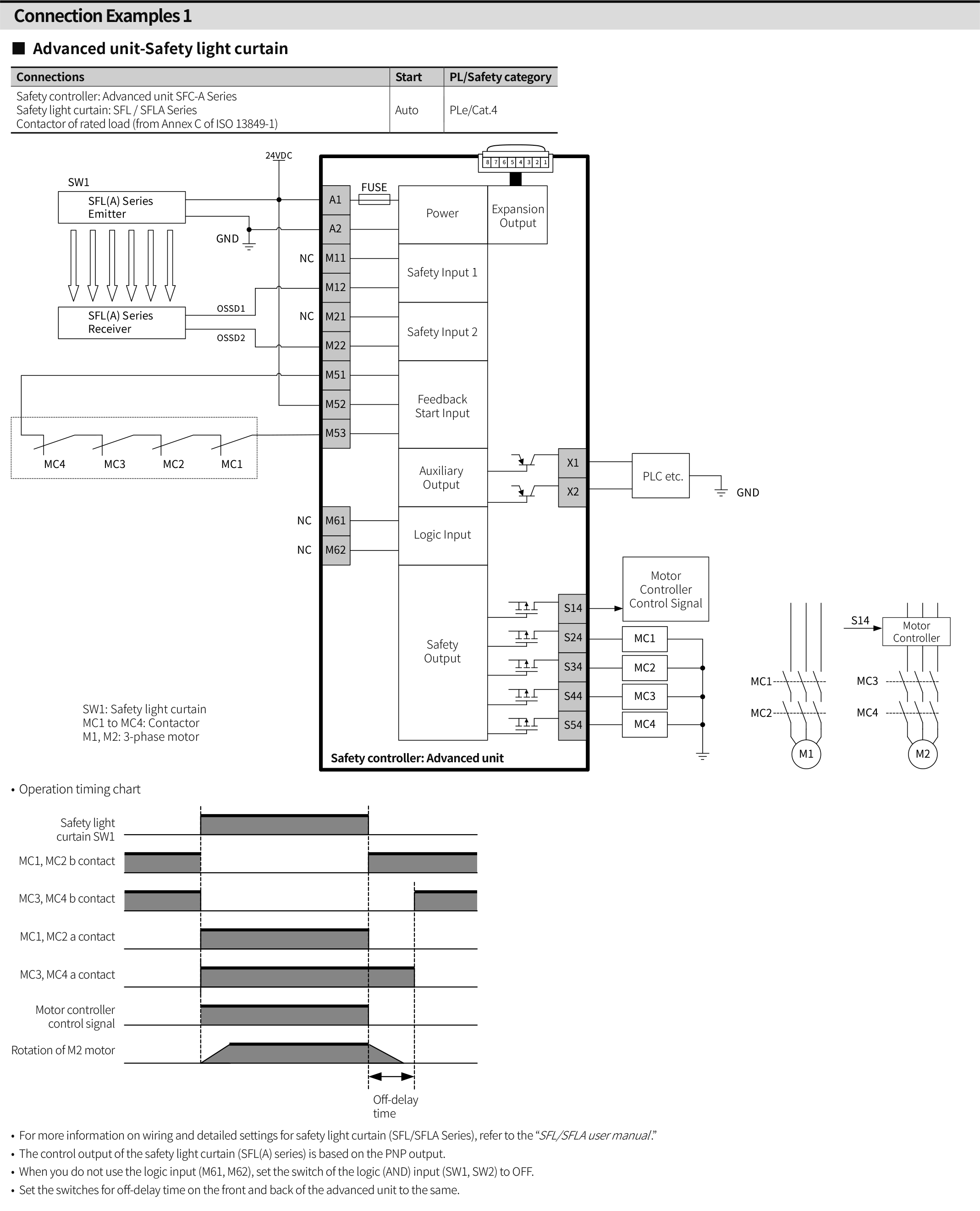

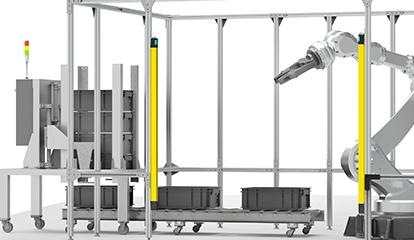

• 例1. PL e/Cat.4 同效(高级单元 – 安全光幕)

  Connection Examples 1

  ■ Advanced unit-Safety light curtain

  Connection Examples

  Connections	Start	PL/Safety category
  Safety controller: Advanced unit SFC-A Series Safety light curtain: SFL / SFLA Series Contactor of rated load (from Annex C of ISO 13849-1)	Auto	PLe/Cat.4 equivalent

  • For more information on wiring and detailed settings for safety light curtain (SFL/SFLA Series), refer to the “SFL/SFLA user manual .”
  • The control output of the safety light curtain (SFL(A) series) is based on the PNP output.
  • When you do not use the logic input (M61, M62), set the switch of the logic (AND) input (SW1, SW2) to OFF.
  • Set the switches for off-delay time on the front and back of the advanced unit to the same.



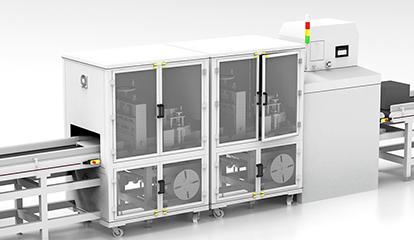

• 例2. PL e/Cat.4 同效(高级单元 – 安全门锁开关，扩展继电器单元)

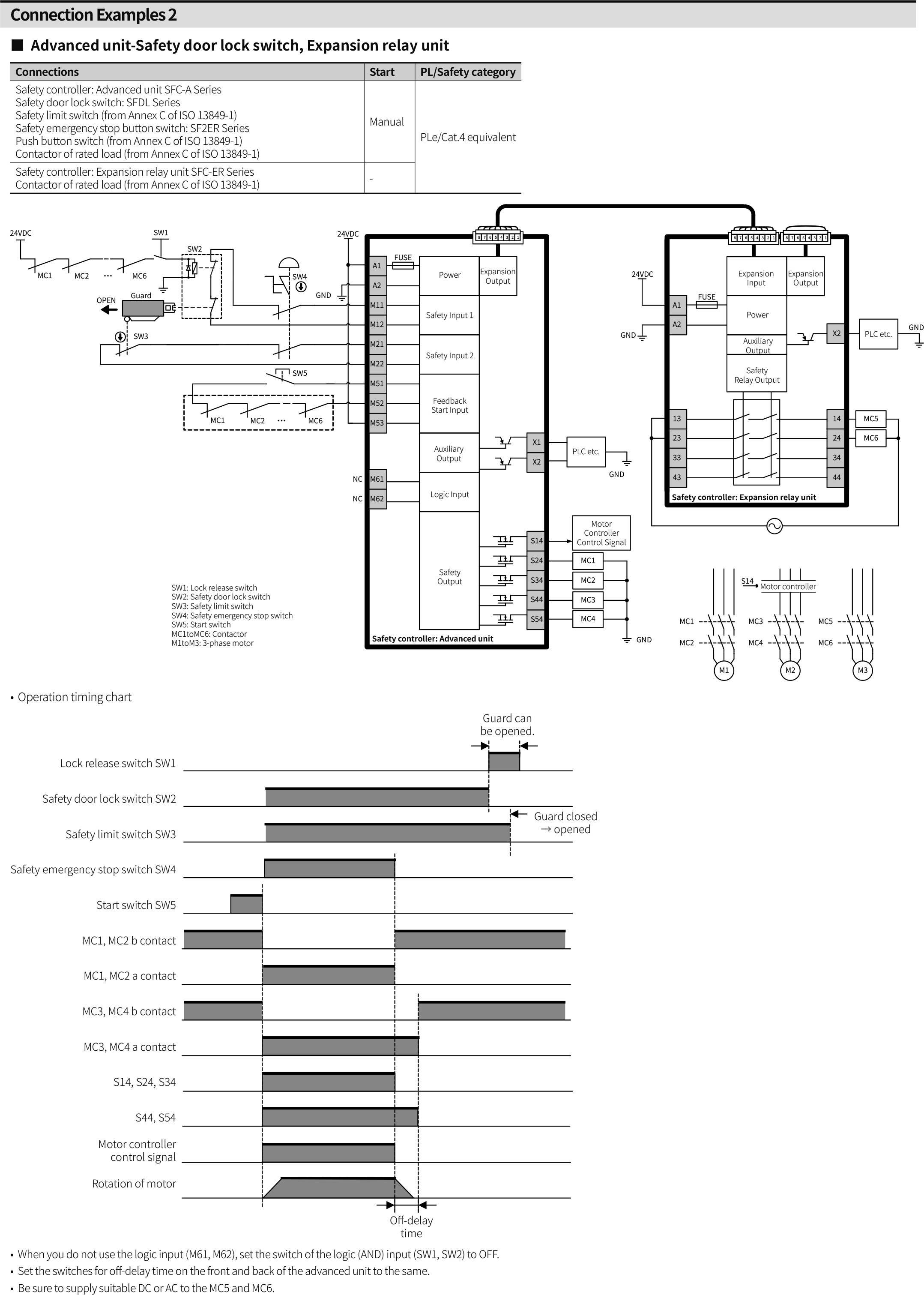

  Connection Examples 2

  ■ Advanced unit-Safety door lock switch, Expansion relay unit

  Connection Examples

  Connections	Start	PL/Safety category
  Safety controller: Advanced unit SFC-A Series Safety door lock switch: SFDL Series Safety limit switch (from Annex C of ISO 13849-1) Safety emergency stop button switch: SF2ER Series Push button switch (from Annex C of ISO 13849-1) Contactor of rated load (from Annex C of ISO 13849-1)	Manual	PLe/Cat.4 equivalent
  Safety controller: Expansion relay unit SFC-ER Series Contactor of rated load (from Annex C of ISO 13849-1)	-

  • When you do not use the logic input (M61, M62), set the switch of the logic (AND) input (SW1, SW2) to OFF.
  • Set the switches for off-delay time on the front and back of the advanced unit to the same.
  • Be sure to supply suitable DC or AC to the MC5 and MC6.



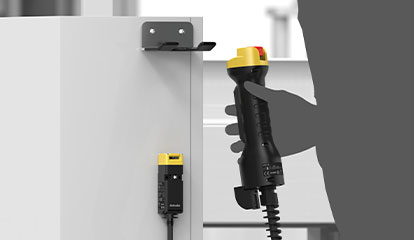

• 例3. PL d/Cat.3 同效(非接触式门开关单元 – 安全非接触式门开关)

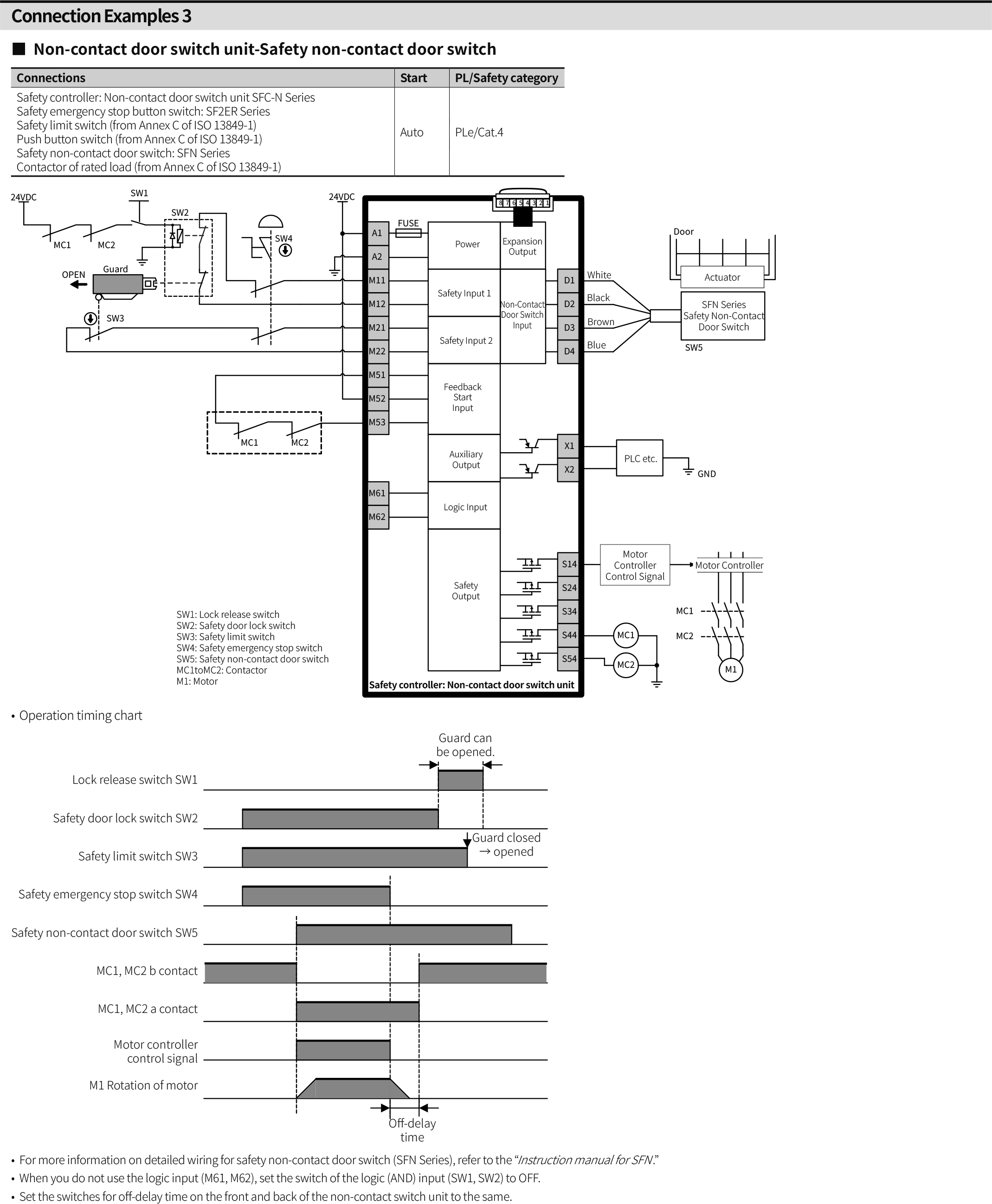

  Connection Examples 3

  ■ Non-contact door switch unit-Safety non-contact door switch

  Connection Examples

  Connections	Start	PL/Safety category
  Safety controller: Non-contact door switch unit SFC-N Series Safety emergency stop button switch: SF2ER Series Safety limit switch (from Annex C of ISO 13849-1) Push button switch (from Annex C of ISO 13849-1) Safety non-contact door switch: SFN Series Contactor of rated load (from Annex C of ISO 13849-1)	Auto	PLd/Cat.3 equivalent

  • For more information on detailed wiring for safety non-contact door switch (SFN Series), refer to the “Instruction manual for SFN .”
    When you do not use the logic input (M61, M62), set the switch of the logic (AND) input (SW1, SW2) to OFF.
    Set the switches for off-delay time on the front and back of the non-contact switch unit to the same.

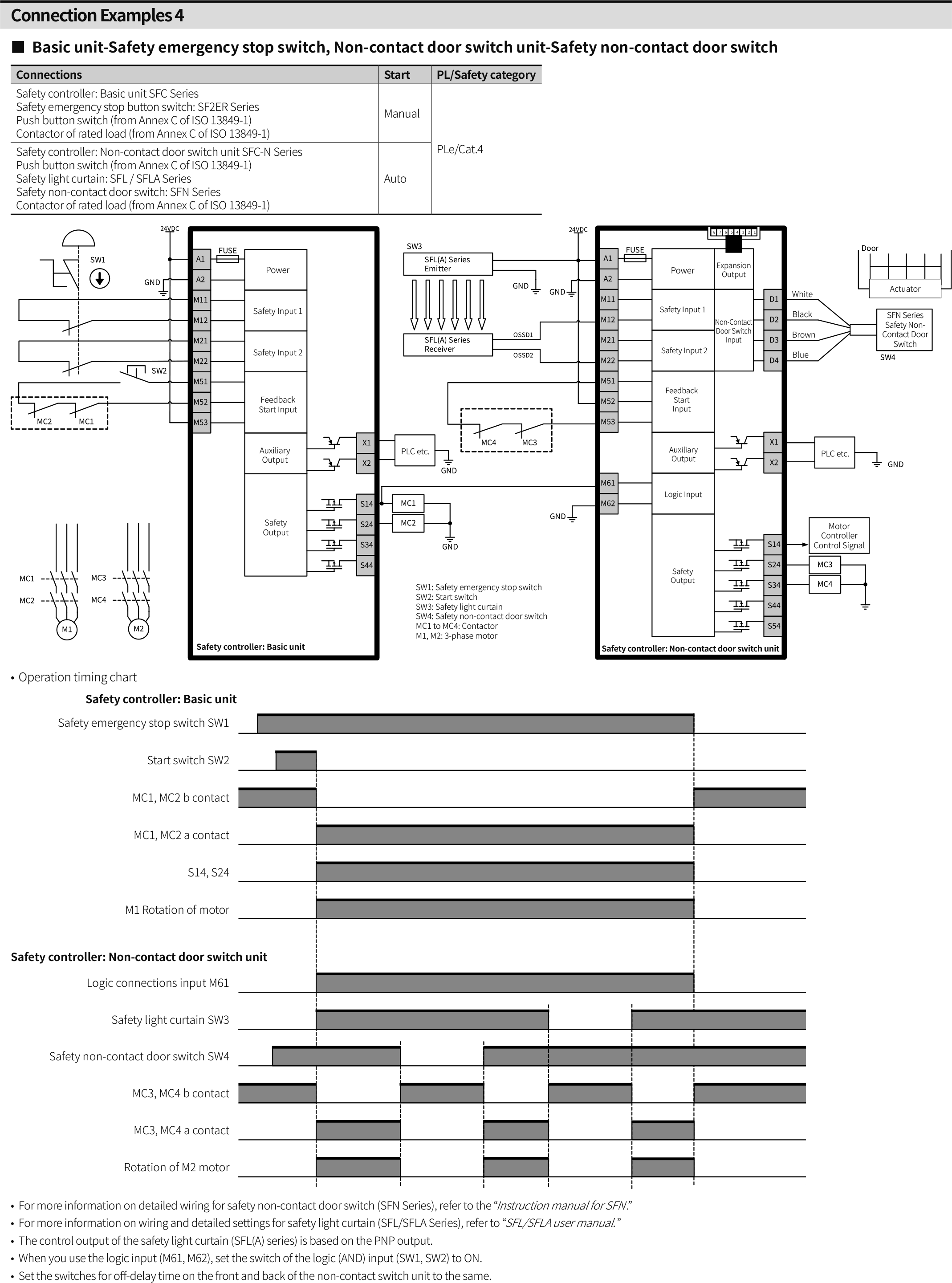

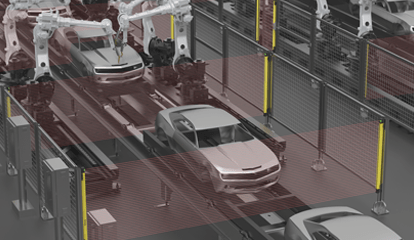

• 例4. PL d/Cat.3 同效(基本单元 – 安全急停开关，非接触式门开关单元 –安全非接触式门开关)

  Connection Examples 4

  ■ Basic unit-Safety emergency stop switch, Non-contact door switch unit-Safety non-contact door switch

  Connection Examples

  Connections	Start	PL/Safety category
  Safety controller: Basic unit SFC Series Safety emergency stop button switch: SF2ER Series Push button switch (from Annex C of ISO 13849-1) Contactor of rated load (from Annex C of ISO 13849-1)	Manual	PLd/Cat.3 equivalent
  Safety controller: Non-contact door switch unit SFC-N Series Push button switch (from Annex C of ISO 13849-1) Safety light curtain: SFL / SFLA Series Safety non-contact door switch: SFN Series Contactor of rated load (from Annex C of ISO 13849-1)	Auto

  • For more information on detailed wiring for safety non-contact door switch (SFN Series), refer to the “Instruction manual for SFN .”
  • For more information on wiring and detailed settings for safety light curtain (SFL/SFLA Series), refer to “SFL/SFLA user manual. ”
  • The control output of the safety light curtain (SFL(A) series) is based on the PNP output.
  • When you use the logic input (M61, M62), set the switch of the logic (AND) input (SW1, SW2) to ON.
  • Set the switches for off-delay time on the front and back of the non-contact switch unit to the same.

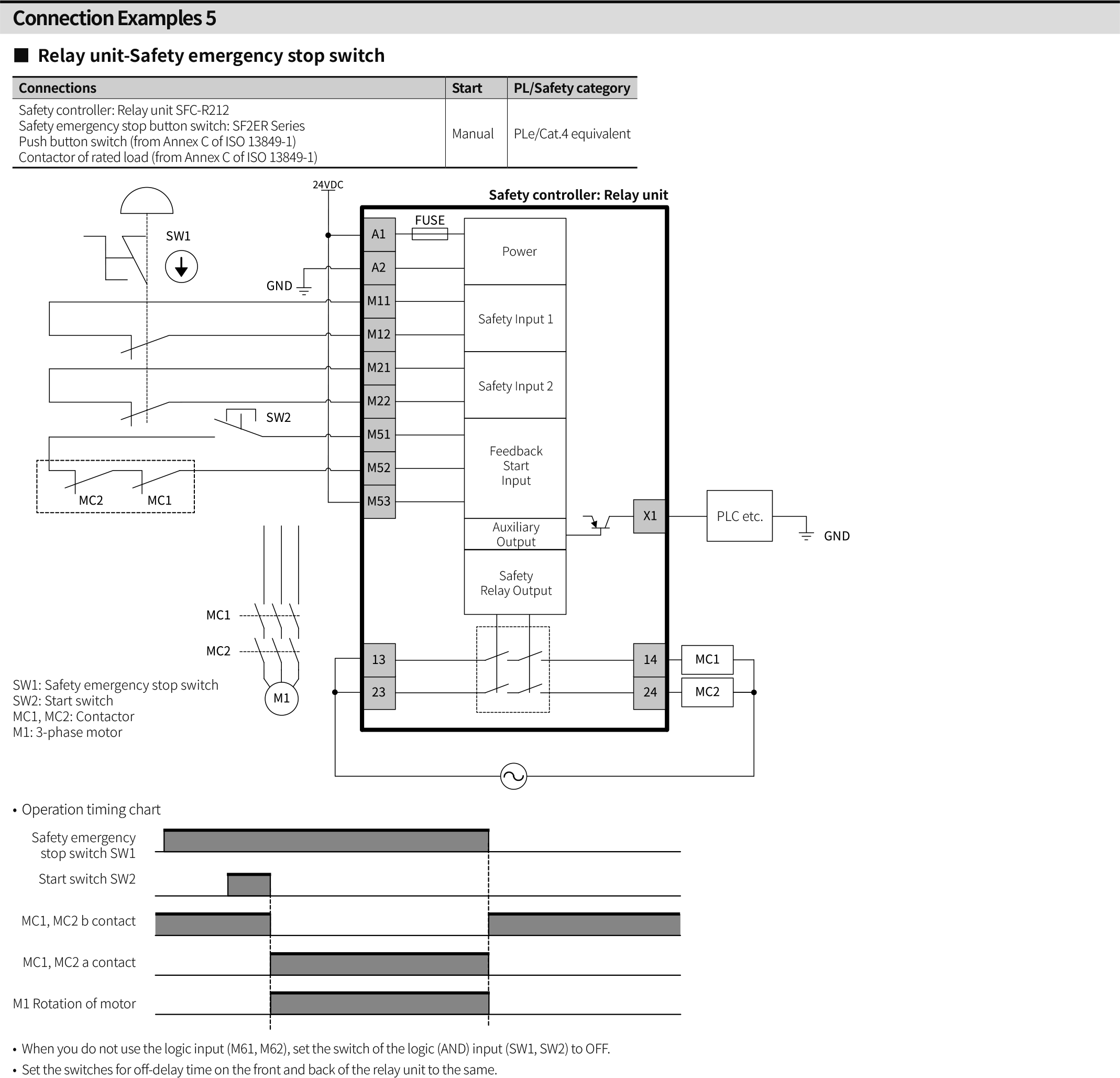

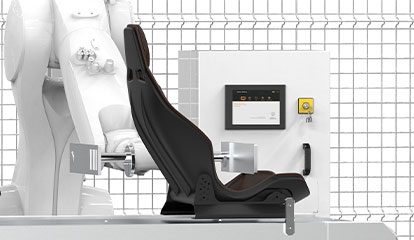

• 例5. PL e/Cat.4 同效(继电器单元 – 安全急停开关)

  Connection Examples 5

  ■ Relay unit-Safety emergency stop switch

  Connection Examples

  Connections	Start	PL/Safety category
  Safety controller: Relay unit SFC-R212 Safety emergency stop button switch: SF2ER Series Push button switch (from Annex C of ISO 13849-1) Contactor of rated load (from Annex C of ISO 13849-1)	Manual	PLe/Cat.4 equivalent

  • When you do not use the logic input (M61, M62), set the switch of the logic (AND) input (SW1, SW2) to OFF.
    Set the switches for off-delay time on the front and back of the relay unit to the same.



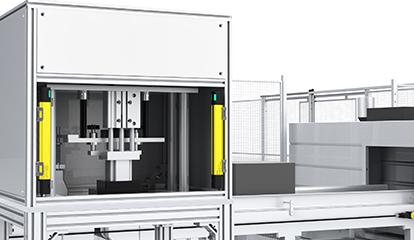

• 例6. PL e/Cat.4 同效(继电器单元 – 安全光幕)

  Connection Examples 6

  ■ Relay unit-Safety light curtain

  Connection Examples

  Connections	Start	PL/Safety category
  Safety controller: Relay unit SFC-R412 Safety light curtain: SFL / SFLA Series Contactor of rated load (from Annex C of ISO 13849-1)	Auto	PLe/Cat.4 equivalent

  • For more information on wiring and detailed settings for safety light curtain (SFL/SFLA Series), refer to the “SFL/SFLA user manual. ”
    The control output of the safety light curtain (SFL(A) series) is based on the PNP output.

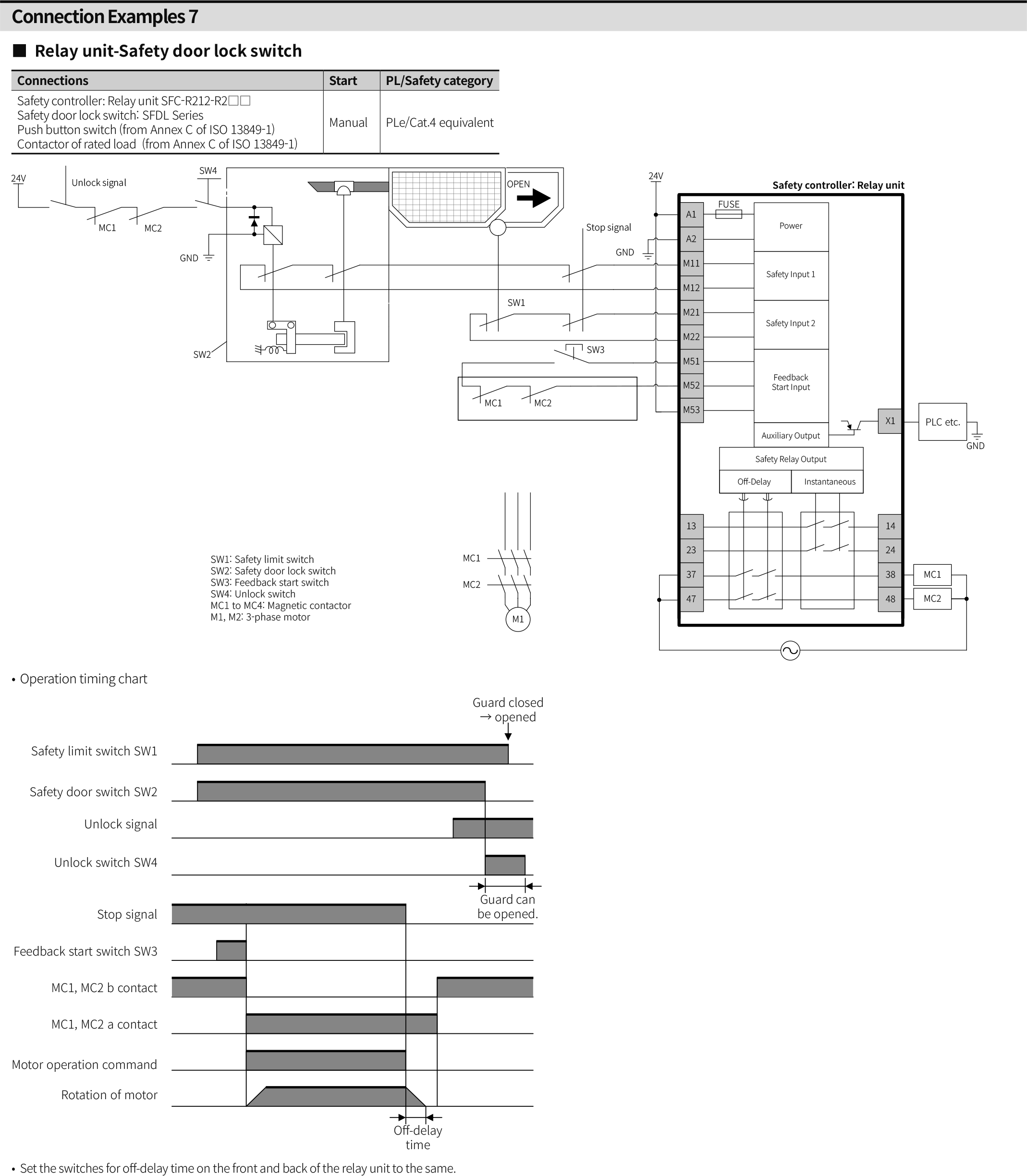

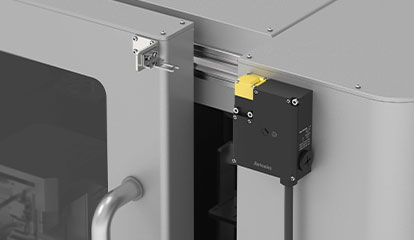

• 例7. PL e/Cat.4 同效(继电器单元 – 安全门锁开关)

  Connection Examples 7

  ■ Relay unit-Safety door lock switch

  Connection Examples

  Connections	Start	PL/Safety category
  Safety controller: Relay unit SFC-R212-R2□□ Safety door lock switch: SFDL Series Push button switch (from Annex C of ISO 13849-1) Contactor of rated load (from Annex C of ISO 13849-1)	Manual	PLe/Cat.4 equivalent

  • Set the switches for off-delay time on the front and back of the relay unit to the same.
